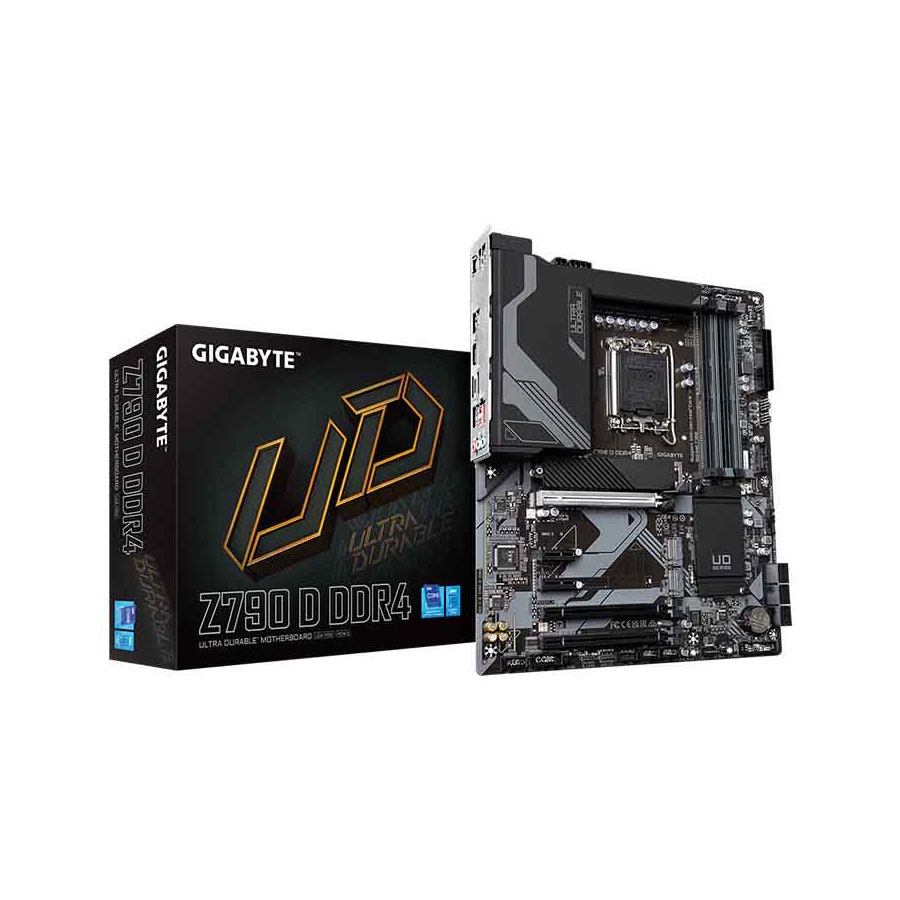

MAINBOARD GIGABYTE Z790 UD DDR4 (Intel Z790, Socket LGA1700, ATX, 4 khe RAM DDR4)

0 (0 lượt đánh giá) | Lượt xem: 113 | Mã SP: --- | Tình trạng:Còn hàng

VRN: 16+1+1 Twin Hybrid Phases Digital Power Design*

+ 60A DrMOS

Socket: LGA1700 hỗ trợ CPU Intel thế hệ 13, Intel thế hệ thứ 12, Pentium® Gold and Celeron® Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 1 x PCI Express 4.0 x16 slots, 1 x PCI Express 3.0 x16 slots, 2 x PCI Express 3.0 x1 slots

Khe cắm ổ cứng: 3 x M.2 slots, 6 x SATA 6Gb/s ports

5.550.000 ₫

Mô tả

Mô tả

Đánh giá MAINBOARD GIGABYTE Z790 UD DDR4 (Intel Z790, Socket LGA1700, ATX, 4 khe RAM DDR4)

5 0% | 0 đánh giá

4 0% | 0 đánh giá

3 0% | 0 đánh giá

2 0% | 0 đánh giá

1 0% | 0 đánh giá

Đánh giá ngay

Đánh giá MAINBOARD GIGABYTE Z790 UD DDR4 (Intel Z790, Socket LGA1700, ATX, 4 khe RAM DDR4)

Chưa có đánh giá nào.

Chưa có bình luận nào

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	Z790 D DDR4
CPU hỗ trợ	Intel
Chipset	Z790
RAM hỗ trợ	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C^® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI 2.0 port 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
