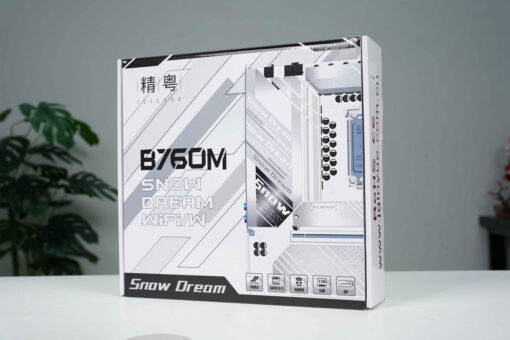

Motherboard model	B760M Snow Dream WiFi/W
Chipset	Intel B760
CPU pins	Supports Intel 12th, 13th, and 14th generation LGA1700 platform processors
Memory slot	4 DDR4 memory slots
Memory capacity	Maximum support for 128GB
Memory standard	Supports dual channel DDR4 4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133MHz frequency (supports XMP technology/actual situation may vary according to different CPU and memory configurations/G1 mode insertion 1A 2A slot dual channel mode)
Display interface	1 HDMI interface; 1 DP interface
4 SATA3.0 6Gbps interfaces; 2 M.2 nvme protocol 4.0 rate interfaces; 1 M.2 nvme protocol 3.0 rate interface	Storage interface
USB interface	Rear 3 USB 2.0 and 2 USB 3.2; The front USB 2.0 pin can accommodate 2 additional external USB 2.0 interfaces; One USB 3.0 pin can accommodate two additional external USB 3.2 interfaces
Expansion Slots	2 PCI Express 4.0 x16 slots (one of which is 4.0 4X)
Wireless interface	1 WiFi interface (with 9560AC module and antenna)
Onboard sound card	Realtek ALC897
Onboard network card	2.5G network card interface
Power socket	24pin+8pin+4pin
Fan pin	4 4-pin fan pins
Number of power supply phases	DR MOS 14+1+1 phase power supply (DR MOS)
RGB pin	4 5v3 pin RGB interface MCU chips
Size specifications	24.5×24.5cm M-ATX version
support system	Windows10 Windows11

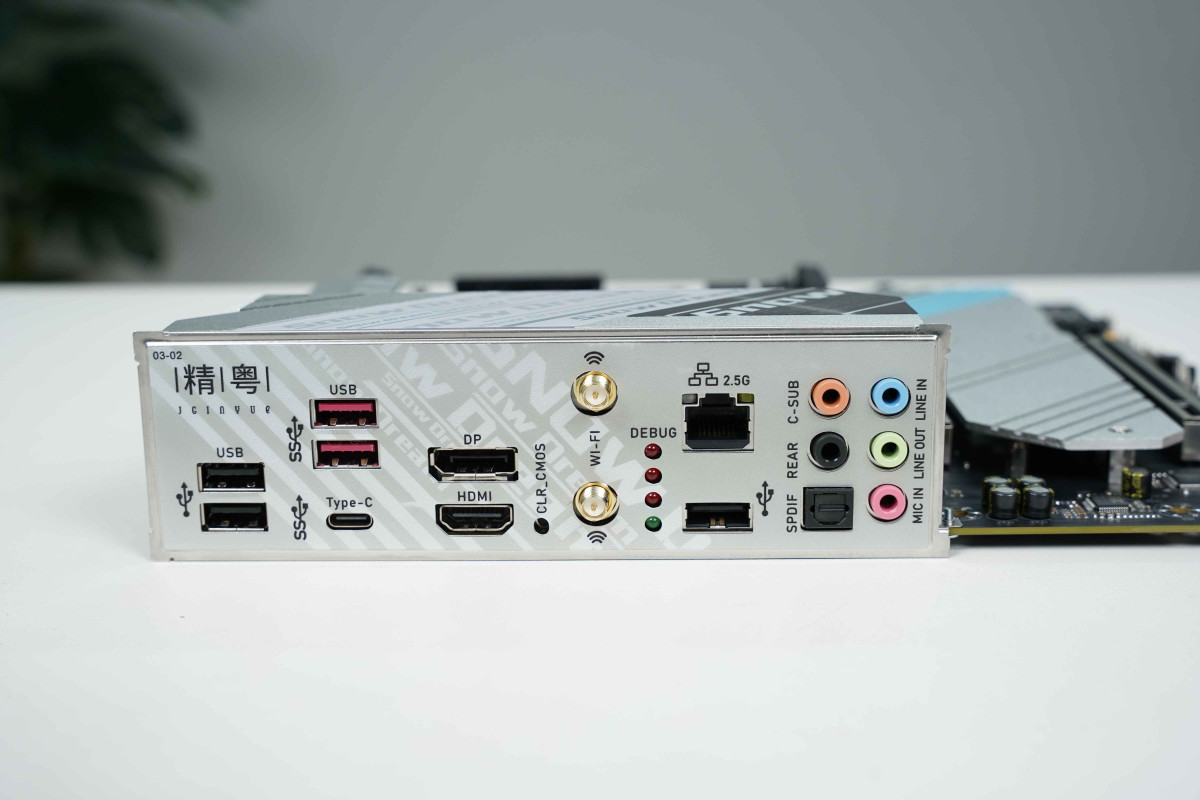

Other interfaces	1 one click clear BIOS button; 1 Type-C interface; DEBUG diagnostic light; 1 SPK1 buzzer pin
